Product Details:
|
| Name: | ABB VTR 214 Turbo | Application: | Drilling Industry |
|---|---|---|---|
| Warranty: | 1 Year | Delivery: | Received Payment |
| Type: | Martine Turbocharger | Engine Type: | Diesel |

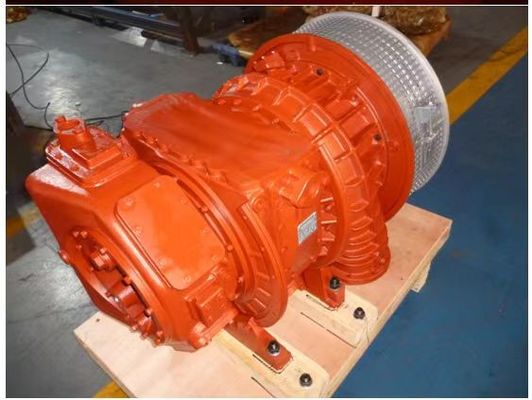

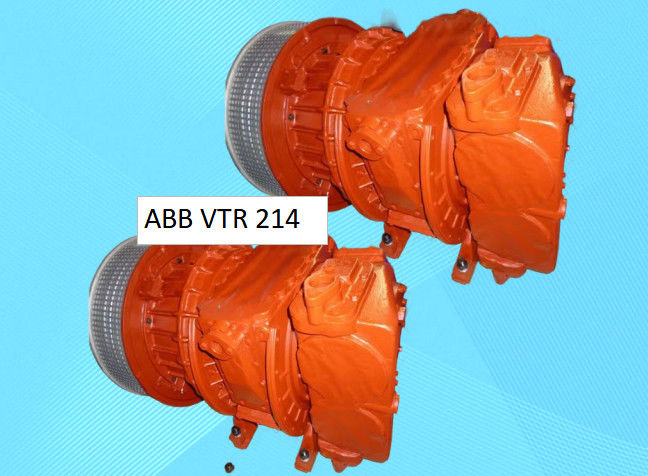

The ABB VTR 214 Martine Turbocharger is a high-performance axial flow turbocharger designed for marine diesel engines. It combines a single-stage axial flow turbine with a centrifugal compressor for efficient air compression and optimized engine performance. Featuring a self-contained lubrication system with externally supported roller bearings and shaft-end centrifugal or gear-driven oil pumps, it ensures reliable operation and minimal maintenance.
1.Flexible Installation: Main shell rotatable in 15° or 30° intervals for adaptable installation angles.
2.Wide Operating Range: Flow rate: 0.5–18 m³/s; Compression ratio: 2.0–4.0.
3.Broad Power Compatibility: Supports engines from 250 kW to 10,000 kW, including twostroke and fourstroke types.
4.High Efficiency: Total efficiency: up to 62%; Compressor: 80%; Turbine: 82%.
5.Robust Bearing System: Externally supported roller bearings with selfcontained lubrication for durability.
6.Customizable Air Intake: Optional watercooled or noncooled air intake housing.
7.Consistent Blade Design: Stable turbine blade height and nozzle ring area for consistent performance.
8.High Pressure Ratio: Maximum pressure ratio of 4.0, ideal for heavy fuel oil applications.
VTR turbochargers are extensively utilized in marine main engines, auxiliary engines, land-based power generation sets, and other diesel engine applications, thanks to their exceptional reliability, operational stability, and broad applicability.
The ABB VTR 214 Martine Turbocharger integrates advanced engineering, high efficiency, and versatile applications to deliver superior performance for marine diesel engines. Ideal for marine propulsion and onshore power generation, it ensures reliable and efficient operation, making it a top choice for enhancing engine performance across diverse applications.
VTR series
| VTR160 | VTR251 | VTR500 | VTR714 | VTR454 | VTR400 | VTR304 | VTR184 |
| VTR161 | VTR320 | VTR501 | VTR214 | VTR564 | VTR401 | VTR354 | |
| VTR200 | VTR321 | VTR630 | VTR254 | VTR201 | VTR631 | VTR250 |
Main Technical Parameters
| Type | Overall Dimensions(mm) | Weight(Kg) | |||||
| A | B | C | D | E | E+D/2 | ||
| Z190 | 317 | 525 | 635 | 546 | 272 | 545 | 240 |
| Z240 | 405 | 560 | 568 | 464 | 286 | 518 | 260 |
| Z300 | 458 | 720 | 690 | 585 | 365 | 657 | 450 |
| Z380 | 555 | 870 | 890 | 730 | 480 | 845 | 900 |
| Z480 | 665 | 1070 | 1050 | 880 | 535 | 975 | 1600 |
| Z250 | 403 | 613 | 670 | 649 | 331 | 656 | 360 |
| Z290 | 479 | 722 | 797 | 768 | 394 | 778 | 575 |
| Z350 | 558 | 870 | 960 | 920 | 468 | 928 | 840 |
| Z410 | 639 | 1013 | 1126 | 1095 | 556 | 1104 | 1750 |
| Z520 | 805 | 1272 | 1415 | 1374 | 700 | 1387 | 3300 |
| Z660 | 1014 | 1584 | 1767 | 1712 | 870 | 1726 | 6600 |
Volume Technical Data
