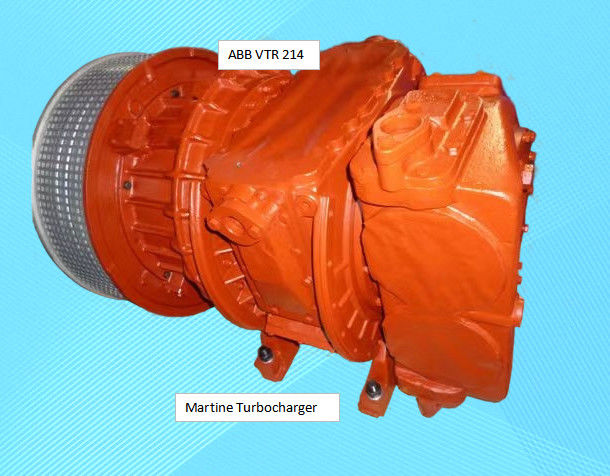

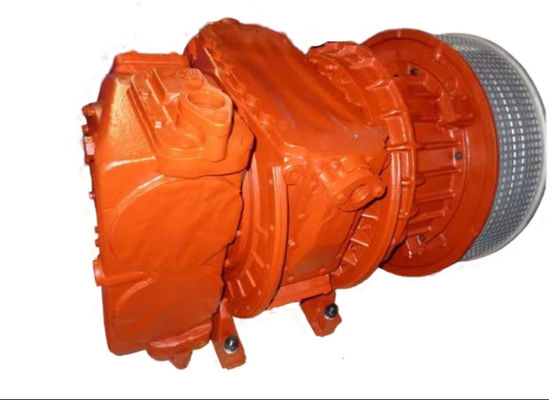

High Efficiency ABB VTR 214 Martine Turbocharger From 250kW To 10000kW

Product Overview

The ABB VTR 214 Martine Turbocharger is a high-performance axial flow turbocharger specifically engineered for marine diesel engines. It integrates a single-stage axial flow turbine with a centrifugal compressor, delivering efficient air compression and optimized engine performance. The turbocharger is equipped with a self-contained lubrication system featuring externally supported roller bearings and shaft-end centrifugal or gear-driven lubricating oil pumps, ensuring reliable operation and reduced maintenance needs.

Key Features

1. Flexible Installation Design:
The turbocharger’s main shell can be rotated in 15° or 30° increments, allowing for precise alignment and adaptability to various engine configurations and spatial constraints.

2. Wide Operating Range:
The VTR 214 supports a flow rate range of 0.5–18 m³/s and a compression ratio range of 2.0–4.0, making it suitable for diverse operational requirements across marine and industrial applications.

3. Broad Power Compatibility:
Designed to accommodate high-speed diesel engines with power outputs ranging from 250 kW to 10,000 kW, the VTR 214 is versatile enough to serve both medium-speed and high-speed engines, including two-stroke and four-stroke models.

4. High Efficiency Performance:
With a total efficiency of up to 62%, the turbocharger achieves individual efficiencies of 80% for the centrifugal compressor and 82% for the axial flow turbine. These metrics ensure superior power output and fuel efficiency.

5. Robust Bearing System:
The externally supported roller bearings, combined with a self-contained lubrication system, provide exceptional durability and reliability, even under demanding operating conditions.

6. Customizable Air Intake:
The air intake housing offers optional water-cooling or non-cooled configurations, enabling tailored performance optimization based on specific engine load requirements.

7. Consistent Blade Design:
The turbine blade height and nozzle ring area are engineered to maintain consistent performance, ensuring stable compression ratios and flow rates across varying operational conditions.

8. High Pressure Ratio Capability:
The VTR 214 achieves a maximum pressure ratio of 4.0, making it highly effective in enhancing engine power output and efficiency, particularly in applications involving heavy fuel oil.

Applications

The ABB VTR 214 Martine Turbocharger is widely used in marine propulsion systems, including main engines and auxiliary engines, as well as in onshore power generation sets. Its robust design and high efficiency make it particularly suitable for engines operating on heavy fuel oil, ensuring reliable performance in both marine and industrial environments.

Conclusion

The ABB VTR 214 Martine Turbocharger combines advanced engineering, high efficiency, and versatile application capabilities to deliver exceptional performance for marine diesel engines. Whether for marine propulsion or onshore power generation, this turbocharger provides reliable and efficient operation, making it an ideal choice for enhancing engine performance across a wide range of applications.


VTR series


Main Technical Parameters

Volume Technical Data
